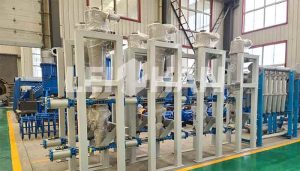

ZSC Series、HD Series High Density Cleaner

Overview

Mainly applied to remove all kinds of heavy impurities in paper pulp, like steples, stones, glasses,etc..

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Mainly applied to remove all kinds of heavy impurities in paper pulp, like staples, stones,glasses,etc.

2.Volute Pulp Inflow Chamber , The eddy ability is strong and low pressure area subatea is obvious.This makes accepts and impurities separate thoroughly.

3.Wear resistance ceramics cone, long service life.

4.Specially designed long cone has small taper angle and fine cleaning efficiency.

5.Equippen with PLC control cabinet, convenient and easy to control, sufficiently discharging impurities.

ZSC Series High Density Cleaner

Type ZSC2 ZSC3 ZSC4 ZSC5 ZSC6 ZSC7
Nominal Size 1000 2000 3500 5000 6500 9000
Throughput(L/Min) 900-1400 1800-2600 3000-4500 4500-5800 5800-7500 8000-12000
Concentration Of Input Pulp(%) 2-5
Pressure Of Input Pulp (mpa) 0.15-0.35
Pressure Of Output Pulp(mpa) 0.1-0.25
Pressure Of Backwash Water(mpa) Pressure Of Input Pulp +0.02Mpa
Discharging Model Manual/Auto/Intermittence/Continuous

HD Series High Density Cleaner

Type HD2 HD3 HD4 HD5 HD6 HD7 HD8
Nominal Size 1000 1500 2000 3000 4000 5500 7500
Throughout(L/min) 800-1200 1200-1800 1800-2500 2500-3500 3500-4500 4500-6500 6500-8000
Concentration Of Input Pulp(%) 2-5
Prssure Of Input Pulp(mpa) 0.3
Discharging Model AUTO
