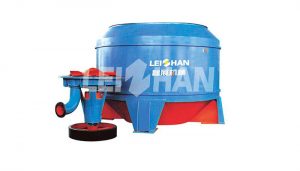

Vertical hydrapulpe is mainly used for breaking pulp board, damage paper and waste paper, etc.
Application&feature
1.Used for breaking pulp board, Damage paper, waste paper and etc.
2.Energy-saving VOKES rotor strengthens hydraulic circulation and fiber relief, continuously pulping, low energy consumption.
Main specifivation
Type | ZDS23 | ZDS24 | ZDS25 | ZDS26 | ZDS27 | ZDS28 | ||
Production Capacity(t/d) | Normal Volume(m³) | 5 | 10 | 15 | 20 | 25 | 30 | |
ONP | Φ6-Φ10 | 25-30 | 45-60 | 65-80 | 85-100 | 110-130 | 130-150 | |
OCC | Φ10-Φ16 | 35-50 | 60-80 | 80-100 | 100-130 | 130-150 | 150-170 | |
AOCC | Φ6-Φ10 | 15-25 | 30-40 | 45-60 | 60-75 | 85-90 | 95-110 | |
Φ10-Φ16 | 25-35 | 40-50 | 60-75 | 75-90 | 95-110 | 110-130 | ||
Chemical Eood Pulp: Batch | 13-18 | 25-30 | 40-50 | 50-60 | 65-85 | 80-100 | ||
Motor Power(kw) | 55 | 110 | 160 | 185 | 220 | 250 |
