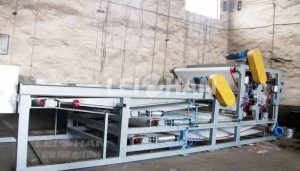

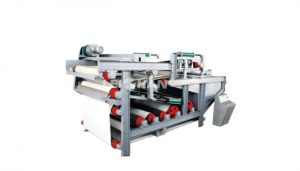

HD Series Sludge Dewatering Machine


It is mainly used to concentrate sludge in paper making industry,municipal engineering ,etc.


  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website


Used to concentrate sludge in paper making industry,muicipal engineering ,etc.

Main Specification

Type HD-1 HD-2 HD-3 HD-4 Note
Width Of Net(mm) 1500 2000 2500 3000


Adjust deviation,

pneumatic (manual)

tensioner, anticorrosive


Speed Of Belt(m/min) 1.5-8
Concentration Of Input Pulp(%) 1.5-4
Concentration Of Output Pulp(%) 20-30
Ptessure Of Washing Water(mpa) ≥0.5
Quantity Of Mud(t/d) 110-280 150-380 210-480 260-400
Motor Power(kw) 2.2±1.1 3+1.5 4+2.2 5.5+2.2
