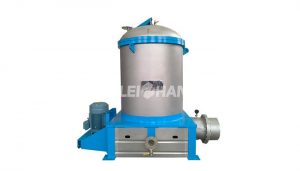

NLS Inflow Pressure Screen
Overview
NLS series inflow pressure screen is advanced paper pulp screening equipment in the modern world, which has great ability of screening function and low pulse. It is widely used in the fine screening of wood pulp, straw pulp and waste paper pulp, especially suitable as the net filter before paper machine.
Contact
- Address:
- Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
- Phone:+86 371 55129198
- E-mail:
leizhanpulper@gmail.com
Application&Feature
1.Small motor power, high production capacity, energy saving.
2.Inflow structure, low pulse, good effect of homogenate.
3.No gaskets companion flange pulp outlet, inwall is polished. Seamless connerction of flow pipeline, no fiber hitching.
4.Automatic oil injection device, seal water detection alarm ensure the safe running of equipment and reduce maintenance.
5.Advaced atructure, sturdy and durable, convenient disassembly and assembly, simple operation, less malfunctions for continuous working, low maintenance cost.
Main Specification
| Type | NLS0.6 | NLS1 | NLS1.5 | NLS2 | NLS3 | NLS4 | NLS5 | NLS6 | NLS7 | NLS8 | NLS9 | NLS10 | NLS11 | |
| Screen Area(m²) | 0.6 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 | 8.5 | 9.6 | 10.5 | 12 | |
| Concentration Of Input Pulp(%) | 0.4-0.8 | |||||||||||||
| Production Capacity(t/d) | Screen Hole(t/d) | 30-60 | 70-130 | 110-160 | 1400-260 | 250-400 | 260-520 | 350-600 | 420-700 | 500-900 | 600-1120 | 700-1200 | 770-1300 | 840-1400 |
| Screen Slot(t/d) | 25-45 | 55-80 | 80-120 | 100-160 | 150-300 | 180-320 | 220-400 | 260-480 | 350-600 | 400-720 | 440-800 | 480-880 | 520-960 | |
| Pressure Of Inflow Pulp(mpa) | 0.1-0.4 | |||||||||||||
| Motor Power(kw) | 7.5-15 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 110 | 132 | 160 | 160 | |
