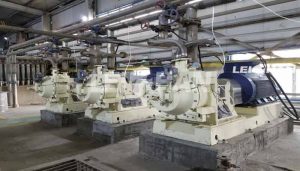

RF Series Double Disc Refiner


China RF series refiner is to grind various pulps, the equipment can be used alone,also can be arranged in a series.Mainly used for pulping,improving slurry beating degree to meet the paper making needs.It can be installed various tooth refiner plates.Suitable various raw material such as wood pulp,mechanical pulp,chemical pulp,waste paper pulp etc.Adopt constant power control system,beating effect is stable.Accurate retract mechanism,easy to control,the beating effect is good.


  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website


1.Mainly used for pulping, improving slurry beating degree to meet the paper making needs.

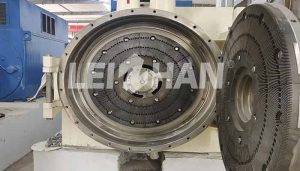

2.It can be installed  various tooth refiner plates. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp etc.

3.Adopt constant power control system, beating effect in stable.

4.Accurate retract mechanism, easy to control, the beating effect is good.

Main Specification

Type RF20 RF26 RF34 RF42 RF52
Disc Diameter(mm) 20-24 26-30 34-38 42-48 52-58
Range Of op.consistency(%) 3.5-6
Min.flow (L/Min4%) 400 700 1400 2200 6000
Max.flow (l/Min4%) 2400 4500 9000 16000 22000
Max.power(kw) 315 500 900 1700 3000
