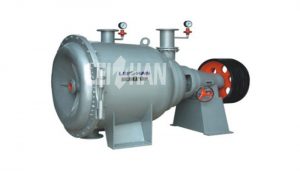

ZDF Series Single Fiber Separator

Overview

Single fiber separator is mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp. It also can be used as tail pulp treatment equipment.

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp.It also can be uesd as tail pulp treatment equipment.

2.Specially designed cone structure can better break fiber, and can effectivetly separate and remove light heavy impurities.

3.Automatically discharge according to requirement ,run reliably.

Main Specification

Type ZDF2 ZDF3 ZDF4 ZDF5
Diameter Of Blade(mm) Φ560 Φ720 Φ980 Φ1100
Product Capacity(t/d) 30-50 60-80 100-180 165-365
Pressure Of Input Pulp(mpa) 0.2-0.3
Concentration Of  Input Pulp(%) 2.5-4
Power Of Motor(kw) 37 55 90 110
