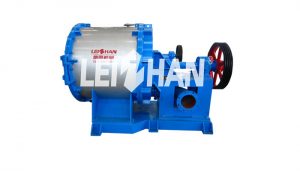

ZDFD Series Single Effect Fiber Separator

Overview

Single-effect fiber separator is used for secondary breaking and screening of waste paper pulp from paper pulp industry, meanwhile separating the light and heavy impurities from the hydrapulper. The screen plate hole of the hydrapulper can be increased, which improves the production capacity.

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from the pulp. It also can be used as tail pulp treatment equipment.

2.Specially designed impeller can break fiber effictively and it is good to separate and remove light and heavy impurities.

3.Automatcally discharge according to requirement, run reliably.

Main Specification

Type ZDFD2 ZDFD3 ZDFD4 ZDFD5 ZDFD6 ZDFD7
Capacity(t/d) 50-70 80-120 180-250 280-360 300-400 400-500
Concentration Of Input Pulp(%) 2-4
Pressure Of Input Pulp(mpa) 0.15-0.2
Pressure Difference(mpa) 0.03-0.05
Power Of Motor(kw) 45 55 75-90 160 200 280
