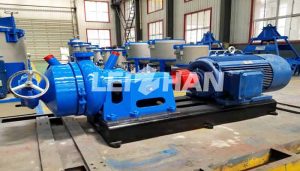

ZDP Series Double Disc Refiner

Overview

Used for beating and improve the beating degree of pulp to satisfy the paper making demand.

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Used for beating and improving the beating degree of pulp to satisfy the papermaking demand.

2.It can be equipped with various tooth refiner plate. Suitable various raw matterials like wood pulp, chemimechanical pulp, chemical pulp and waste paper pulp.

Main Specification

Type Φ380 Φ450
Diameter Of Plate(mm) 380 450
Product Capacity(t/d) 6-20 8-60
Concentration Of Input Pulp (%) 3-5
Pressure Of Input Pulp(mpa) 0.1-0.2 0.15-0.2
Motor Power(kw) 37-55 75-90-110
