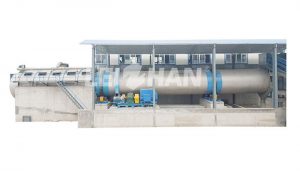

ZG Series Drum Pulper
Overview
This type of Drum type hydrapulper is mainly used in the paper making industry to breaking continuously and coarse screening of the waste paper material under the high consistency.It can maximum keep the physical property of the fiber.
Contact
- Address:
- Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
- Phone:+86 371 55129198
- E-mail:
leizhanpulper@gmail.com
Application&Feature
1.Mainly used for continuous gentle pulping and coarse screening of waste paper under high consistency. Drun pulper can continuous pulp and preliminary screen, simplify process.
2.It can gently pulp under 14%-18% high consistency to uttermost maintain the physical property of fiber.
3.Low damage to impurities and high efficiency of deslagging reduce the following equipment burden.
4.Low energy consumption, reduce running cost, improve the competitiveness for per ton pulp.
5.Long pulping residence time, sufficient fiber relief,low rate fine fiber loss.
6.few quick-wear parts, continuous pulping, low maintenance cost.
Main specification
| Type | ZG2500 | ZG2750 | ZG3000 | ZG3250 | ZG3500 | ZG3750 | ZG4000 | ZG4250 | ZG4500 |
| Drum Diameter(mm) | 2500 | 2750 | 3000 | 3250 | 3500 | 3750 | 4000 | 4250 | 4500 |
| Production Capacity(t/d) | 70-120 | 140-200 | 200-300 | 240-400 | 400-600 | 550-800 | 750-1000 | 1000-1400 | 1400-1800 |
| Working Consistency(%) | 14-18 | ||||||||
| Motor Power(KW) | 132-160 | 160-200 | 280-315 | 315-400 | 560-630 | 630-800 | 800-1000 | 1000-1400 | 2*710-1200 |
