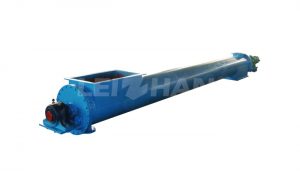

ZLS Series Heating Screw Conveyor

Overview

Mainly used for conveying the concentrated pulp into the high consistency mixer,at the same time heating the slurry and adding bleach solution.

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Mainly used for conveying the concentrated pulp into the high consistency mixer,at the same time heating the slurry and adding bleach solution.

2.Optimization of the spiral blade can ensure the high consistency pulp convey, while keep loose state, which is advantage to the pulp evenly heating.

3.Reasonable heating debice roe with special designed anti-push spiral blades can assure slurry uniform heating while save the steam consumption.

4.Frequency control can be easily adjusted to match with other capability of equipment.

Main Specification

Type ZLS1 ZLS2 ZLS3 ZLS4
Diameter(mm) Φ500 Φ600 Φ700 Φ800
Consistency(%) 32-35
Production Capacity(t/d) 30-70 80-120 140-170 180-230
Motor Power (kw) 7.5 15 22 30
