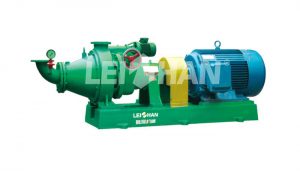

ZM Series Conical Refiner


ZM series conical refiner is mainly used for coarse and fine refining of pulp, broke paper, recycled pulp, and it is available for pulping long fiber pulp material, such as cotton pulp, wood and hemp pulp.


  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website


1.Primarily apply for continuously pulping wood pulp, mechanical pulp, cotton pulp, waste paper pulp etc. Improving the beating degree, which can be used with double disc refiner in series.

2.With features of long refining ares , fully process finer, strong ability to cut fiber.

3.Shell is lined is stanless steel for improving service life.

4.Adopt constant power control system, the beating effect is stable.

5.Rotor and stator have various tooth. Suitable carious raw materials.

Main Specification

Rotor Size(mm) Φ450 Φ460
Operation Concentration(%) 3-5 3-5
Product Capacity(t/d) 20-60 30-150
Motor Power(kw) 110 132-315
