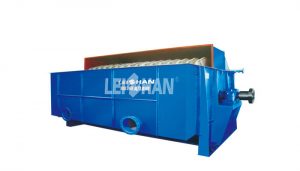

ZNP Series Disc Thickener
Overview
Used to wash and thicken for low consistency slurry.
Contact
- Address:
- Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
- Phone:+86 371 55129198
- E-mail:
leizhanpulper@gmail.com
Application&Feature
1.Used to wash and thicken for low consistency slurry.
2.Combined disc type filter drum increases the filter area greatly, less space requirement, but large production capacity.
3.Adopt stainless steel filter screen, long service life.
4.Reasonable structure for pulp cleaning and stripping . Filter screen is not easy to block.Dewatering capacity is good.
Main Specification
| Type | ZNP2508 | ZNP2510 | ZNP2512 | ZNP2514 | ZNP2516 | ZNP3510 | ZNP3512 | ZNP3514 | ZNP3516 |
| Diameter Of Disc(mm) | Φ2500 | Φ2500 | Φ2500 | Φ2500 | Φ2500 /Φ3500 | Φ3500 | Φ3500 | Φ3500 | Φ3500 |
| Amount Of Disc(n) | 8 | 10 | 12 | 14 | 16 | 10 | 12 | 14 | 16 |
| Nominal Area(m²) | 60 | 75 | 90 | 105 | 120 | 150 | 180 | 210 | 240 |
| Concentration Of Input Pulp(%) | 0.8-1.2 | ||||||||
| Concentration Of Output Pulp(%) | 3.5-4.5 | ||||||||
| Processing Capacity ONP(t/d) | 0.9-1.2t/m²/d | ||||||||
| Processing Capacity AOCC(t/d) | 1.5-2.4t/m²/d | ||||||||
| Motor Power(kw) | 11/15/18.5/22/30 | ||||||||
