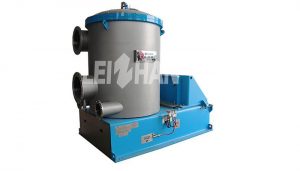

ZNS Series M.C. Pressure Screen


Mid consistency pressure screen is advanced paper pulp screening equipment in contemporary international world, it is the new generation paper pulp screening equipment researched and developed by our company with absorbing international advanced technology. It has strong adaptability, energy saving, water saving and high production efficiency etc.specially used for coarse and fine screening various recycled pulp.


  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website


1.Mainly used for coarse and fine screening of various waste paper pulp.

2.Many rotor blades, no winding, high efficient and energy-saving rotary rotor.

3.The machine can screen pulp normally under quite high consistency(2.5-4%).It reduces the amount of water cycle and system energy consumption in production process.

4.Heavy impurities discharge pipe makes sure the screen basket runs safely.

5.Advanced structture, sturdy and durable, convenient disassembly and assembly, low energy consunption, less loss of fiber.

6.Easy to operate, less malfunctions for continuous working, less maintenance cost.

7.Automatic oil injection device can reduce maintenance.

8.Seal water flow automatic detection alarm device makes sure the system runs safety.

9.Interlock system ensures the service life of equipment.

Main Specification

Type ZNS0.3 ZNS0.6 ZNS0.9 ZNS1.2 ZNS1.5 ZNS2 ZNS2.5 ZNS3 ZNS4 ZNS6
Screen Area(m²) 0.3 0.6 0.9 1.2 1.5 2 2.5 3 4 6
Screen Hole Size(mm) Φ1.6-Φ3.5
Screen Slot Size (mm) 0.1-0.55
Production Capacity(t/d) Screen Hole(t/d) 50-80 90-160 135-250 180-320 200-380 260-500 300-600 400-700 500-1000 800-1500
Screen Slot(t/d) 30-50 60-100 90-150 120-190 140-230 200-300 250-400 300-450 350-730 500-1100
Inlet Pulp Consistency(%) 1-4
Motor Power(kw) 22-55 30-75 37-90 45-110 55-132 75-160 90-200 90-220 132-280 250-400
