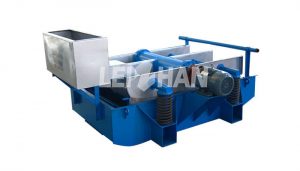

ZSK Series Vibrating Screen

Overview

Self-cleaning vibrating screen is developed by the reference of foreign equipment, the machine design is reasonable, screening capability is strong, with self-cleaning function, high efficiency, energy saving, low noise, easy maintenance, It is the domestic more advanced screening equipment. It is mainly used for pulp tailings processing, with large filtering area, low power consumption and clean impurity.

Contact

  • Address:
  • Hetun Industrial Area, Dawei Town, Xinmi City, Henan Province ,China
  • Phone:+86 371 55129198
Visit Website

Application&Feature

1.Used for screening and removning various impurities in pulp suspension.

2.Specially designed air seal chamber makes self-cleaning abulity of sieve plate very strong.

3.Perfect screening effect, stable running,low noise,easy maintenance.

Main Specification

Type ZSK1 ZSK2 ZSK3
Screen Area(m²) 1 2 3
Product Capacity Of Hole Screen(t/d) 7.5-25 12-50 25-75
Product Capacity Of Slot Screen(t/d) 3.5-7.5 7-15 11-25
Input Pulp Concentration Of Hole Screen(%) 1-1.5
Input Pulp Concentration Of Slot Screen(%) 0.5-0.8
Motor Power(kw) 2.2 3 4
